| Specifications |
| Operating Weight | 1.8(T) |

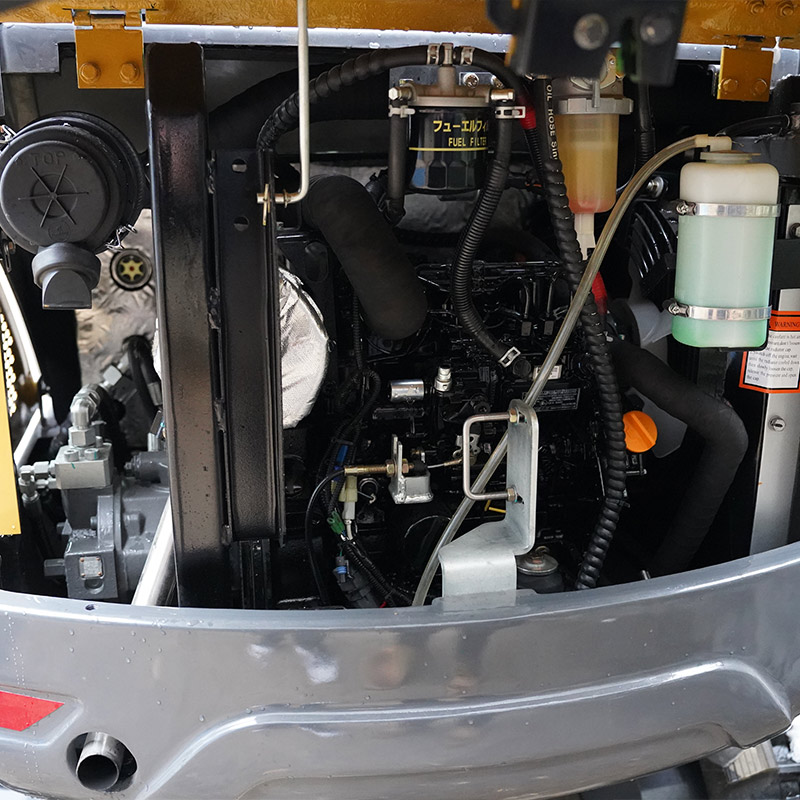

| Engine Model | 3TNV74F Euro V |
| Rated Power | 10.3/2200(kw/r/min) |
| Max.Flow | 49.5(L/min) |
| Working Pressure | 21(Mpa) |
| Travel Speed | 2.1/4.2(km/h) |
| Swing Speed | 8.5(r/min) |
| Bucket Capacity | 0.04(m3) |
| Fuel Tank Capacity | 32(L) |
| Hydraulic Oil Tank Capacity | 27(L) |
| Max.Gradeability | 58%/30° |
| Ground Pressure | 28(Kpa) |
| Arm Digging Force | 8.6(KN) |
| Bucket Digging Force | 13.5(KN) |
| A-Verall Length（mm） | 3867 |
| B-Overall Width（mm） | 1000 |
| C-Overall Height (to top of boom)（mm） | 1185 |
| D-Overall Height (to top of driving shed)（mm） | 2313 |
| E-Counterweight Ground Clearance（mm） | 484 |
| F-Min.Ground Clearance（mm） | 175 |
| G-Taill Swing Radius（mm） | 1072 |
| H-Track Grounding Length（mm） | 1210 |
| J-Track Length（mm） | 1588 |
| K-Track Gauge（mm） | 760 |
| L-Track Width（mm） | 990 |
| M-Track Shoe Width（mm） | 230 |
| Max. Digging Height（mm） | 3327 |
| Max.Dumping Height（mm） | 2323 |
| Max. Digging Depth（mm） | 2110 |
| Max. Vertical Digging Depth（mm） | 1600 |
| Max. Digging Reach（mm） | 3900 |
| Max. Digging Reach at Ground Level（mm） | 3840 |
| Deflection angle (left/right) | 56°/ 52° |
| Max. pushing height / depth | 240/198 |
