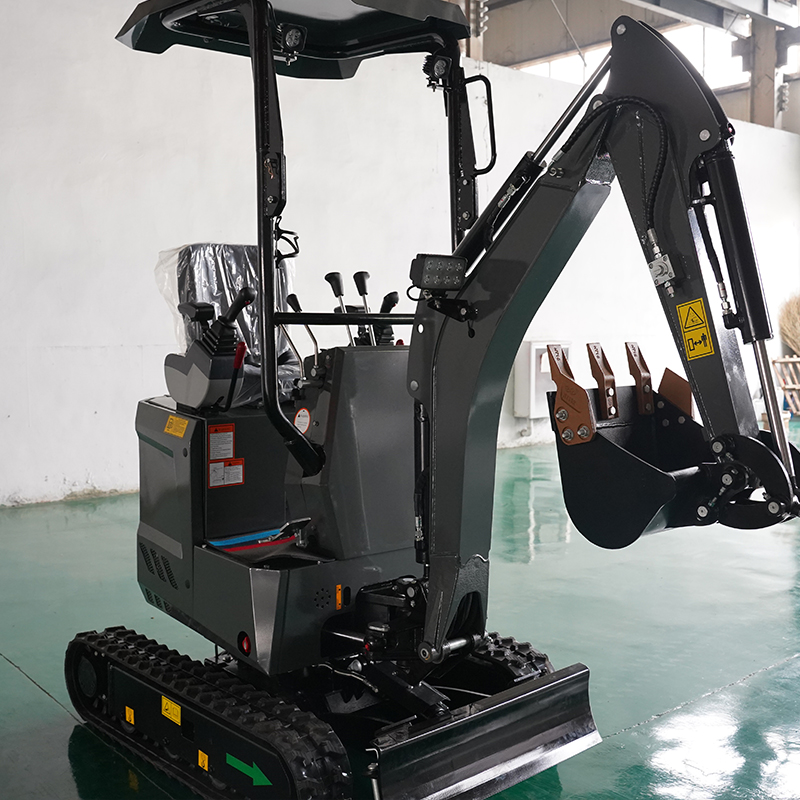

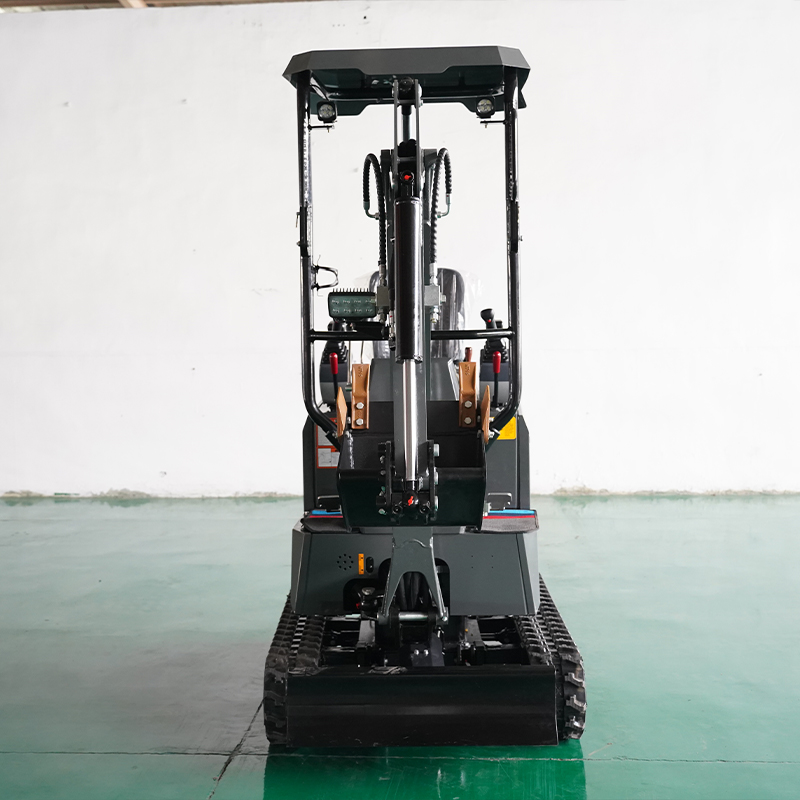

Mini Excavator SD12
Mini excavator with cast upper frame: stronger upper frame, smaller size of the whole machine, easy to transport, suitable for narrow working conditions.
Compact structure, fast speed and comfortable operation;
New appearance design, mecha style, more attractive

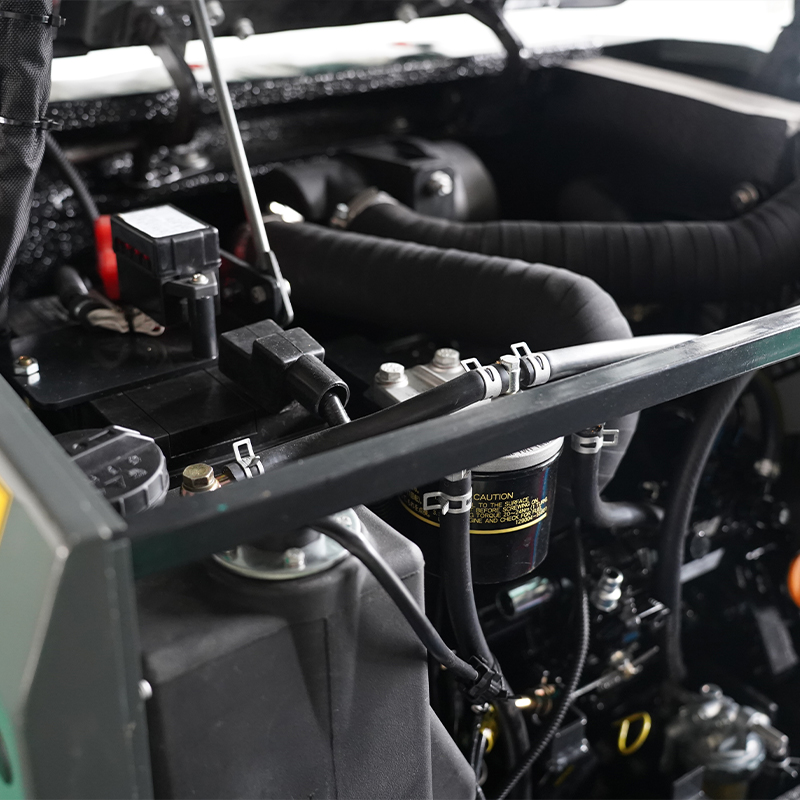

Original Japanese Yanmar engine: automatic idling function, low energy consumption.
Load sensing hydraulic system: realizing precise control of different execution elements, good controllability and high working efficiency.
Optional quick coupling device for easy replacement of different tools.

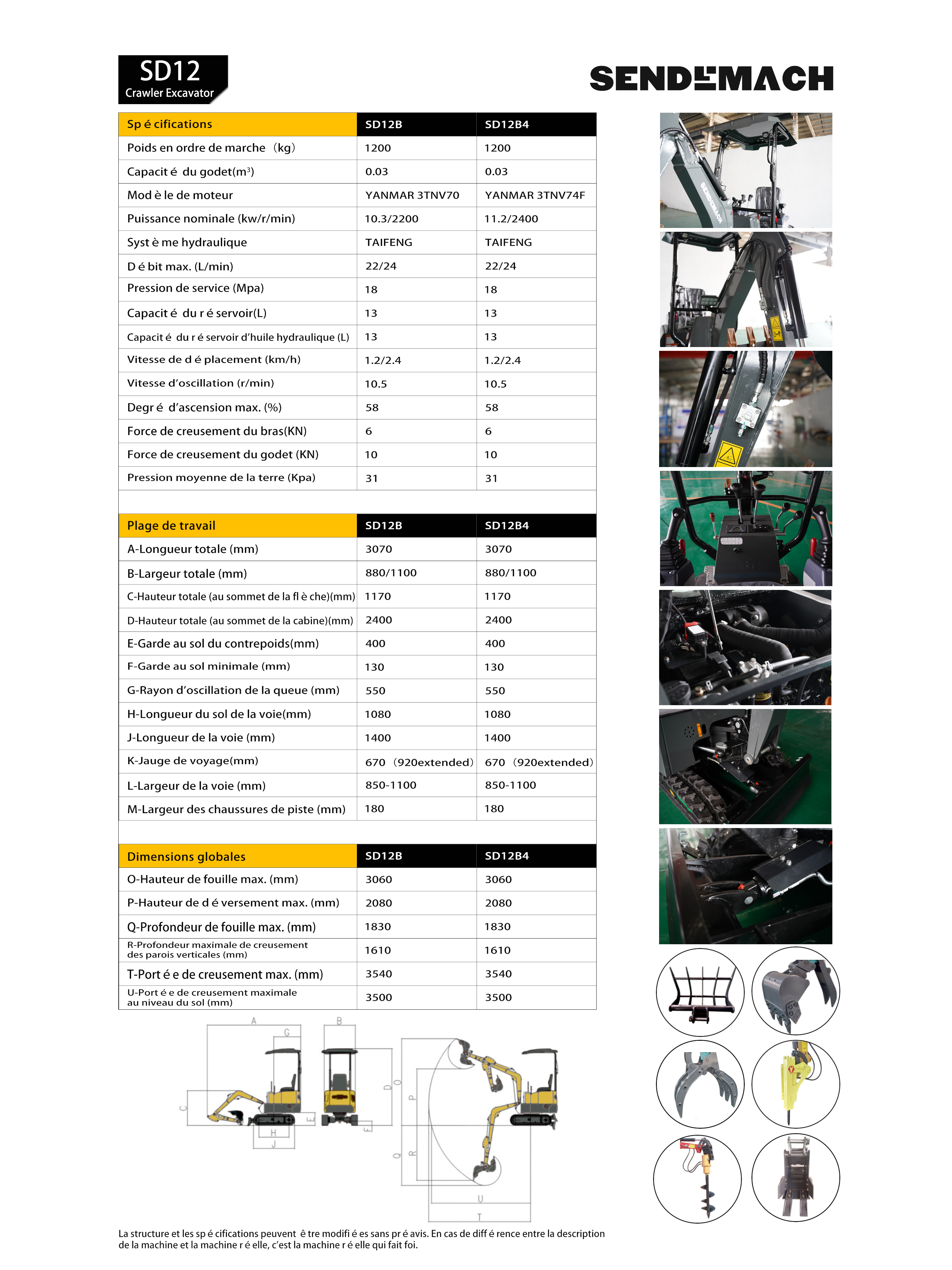

| Specifications |
| Operating Weight | 1.2(T) |
| Engine Model | Euro V |
| Rated Power | 11.2/3000(kw/r/min) |
| Max.Flow | 20.4(L/min) |
| Working Pressure | 18(Mpa) |
| Travel Speed | 2.1(km/h) |
| Swing Speed | 12(r/min) |
| Bucket Capacity | 0.03(m3) |
| Fuel Tank Capacity | 15(L) |
| Hydraulic Oil Tank Capacity | 13(L) |
| Max.Gradeability | 58%/30° |
| Ground Pressure | 30(Kpa) |
| Arm Digging Force | 60(KN) |
| Bucket Digging Force | 10(KN) |
| A-Verall Length（mm） | 3057 |
| B-Overall Width（mm） | 850 |
| C-Overall Height (to top of boom)（mm） | 1035 |
| D-Overall Height (to top of driving shed)（mm） | 2458 |
| E-Counterweight Ground Clearance（mm） | 404 |
| F-Min.Ground Clearance（mm） | 120 |
| G-Taill Swing Radius（mm） | 806 |
| H-Track Grounding Length（mm） | 972 |
| J-Track Length（mm） | 1296 |
| K-Track Gauge（mm） | 670 |
| L-Track Width（mm） | 850-1050 |
| M-Track Shoe Width（mm） | 180 |
| Max. Digging Height（mm） | 3018 |
| Max.Dumping Height（mm） | 2039 |
| Max. Digging Depth（mm） | 1809 |
| Max. Vertical Digging Depth（mm） | ------ |
| Max. Digging Reach（mm） | 3439 |
| Max. Digging Reach at Ground Level（mm） | 3390 |
| Deflection angle (left/right) | 50°/ 70° |
| Max. pushing height / depth | 195/195 |
